This solution is used at:
Rund um Köln
Cologne
Every year, more than 3,000 ambitious cyclists start over various distances in Germany's oldest cycling race still taking place. Since 2019, the athletes have been riding with RACE RESULT seat post transponders and are timed at the start and finish with high-gain antennas. As a result, the net timekeeping prescribed by the German Cycling Cup can also be implemented without any effort. A special feature is the separate mountain classification, in which the fastest climber is sought. The times are transmitted from the decoders to the RACE RESULT server via SIM card and are therefore available for evaluation in real time.
Perfect for gran fondos, sportives, charity rides, and mass-participation cycling events, the RACE RESULT Passive System uses seat-post stickers with integrated transponders. Easy to distribute and requiring no return, it delivers real-time results through barrier-free detection with high-gain antennas. Trusted at events with thousands of riders, it enables accurate net-time measurement—without slowing the race flow.
Perfect transponders
Seat-post sticker transponders stick on in seconds and stay put—no clip-ons, no bibs, no collection after the ride.
Barrier-Free Detection
High-gain antennas mounted roadside eliminate timing mats—cyclists ride straight through as the system captures every pass.
Timing Thousands with Ease
The passive system handles large fields effortlessly, providing real-time net results at finish line speeds up to 60 km/h.

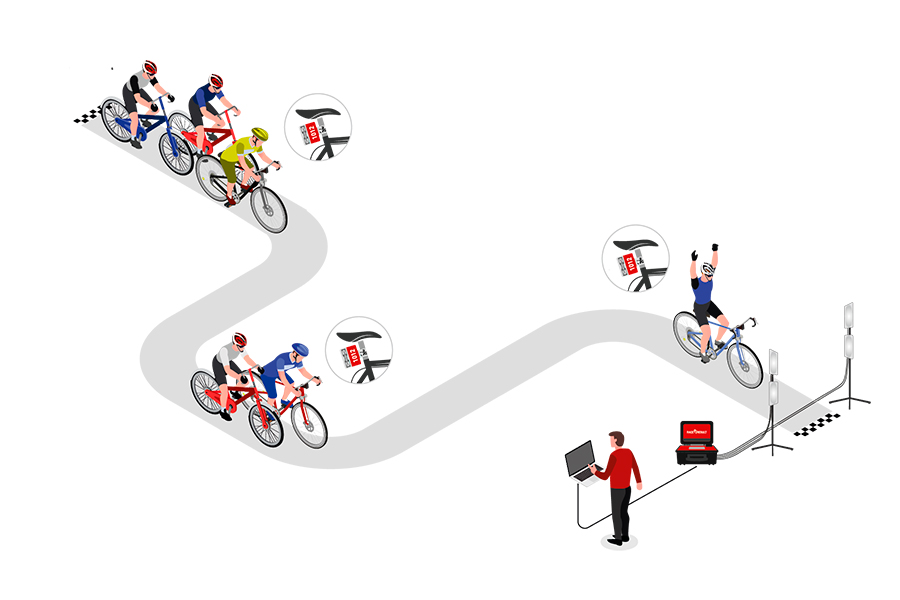

Ideally, set up high gain antennas on each side of the road. Connect all antennas to the same decoder. The cables of the antennas on the opposite side can be taped to the ground, or you can run them over the track using a target/sponsor traverse or similar. Connect the decoder to a laptop to get all finish times in real time. In RACE RESULT 12, use the 'Standard event' template. This template is the perfect place to start and may already have everything you need
Decoder
Receives the signals from the transponders, calculates the exact finish time and provides the data to the scoring software like RACE RESULT 12 in real time. Internal battery for 8-10 hours, integrated 4G module, precise GPS time, 2 ethernet ports.
High Gain Antenna
With high signal power these antennas provide long range and high precision. Please note: High Gain Antennas can currently only be connected to RACE RESULT Decoders, not to our new timing system Ubidium!
2x Cable for High Gain Antenna
Seatpost Sticker with Transponder
The aerodynamic solution for large cycling events. The UHF transponder is incorporated into the material and programmed to match the printed start number. Customizable layout!
RACE RESULT 12 Software
The complete software for timing and managing of any kind of sports event. The intuitive user interface allows you to setup events without complicated formulas or calculations. Featuring registration, event timing, scoring, live results and various output options in one browser-based solution.
Tyvek Bib (without transponder) (Optional)
Sticker waterproof (Optional)
Talk to our Experts
Our team has supported events of all sizes across the globe — and we're here to help you too. Get expert advice on the ideal timing setup for your race.
| rent | buy | ||
| RACE RESULT System 5000s, 4.8m | 320 EUR | 4,290 EUR | per system |
| High Gain UHF Antenna | 300 EUR | per piece | |
| 2m connecting cable for High Gain UHF Antenna | 35 EUR | per piece | |
| Seatpost Sticker with Transponder | 1.35 EUR - 1.91 EUR | per piece | |
| Tyvek Bib A5 | 0.19 EUR - 0.25 EUR | per piece | |
| Sticker waterproof for the helmet |
0.10 EUR - 0.20 EUR | per piece | |
| Software RACE RESULT 12 including online registration |
0.09 EUR - 0.32 EUR | per participant |
|
| Optionally: payment processing for online registration |
1%-5% plus transaction fee
depending on the payment method |
||
| All prices plus VAT / tax if applicable | |||
