This solution is used at:
RACE RESULT offers the ideal solution to reliably and autonomously capture multiple split times along the course.
The Track Box Passive lets you set up timing points anywhere in seconds – whether for a single race day or as a semi-permanent installation over weeks or months. Without the need for power or staff on site, the Track Box is the perfect tool for organizers and timers who want reliable live data with minimal effort and maximum flexibility.
Self-sufficient device
With its integrated UHF reader, LTE modem, battery, SIM (insert your own) and GPS, the TrackBox Passive is a complete timing sytsem. It can even be connected to a solar panel for permanent installation.
Hands-free solution
The device is activated with one click of a button click and now runs autonomously. It needs no further operation by a helper to send detection data for 10-18 hours.
Unmatched dimensions
With a weight of only 1.7kg/3.7lbs, the box can be easily carried to remote locations. Automatic standby mode lets the box preserve energy during the night.

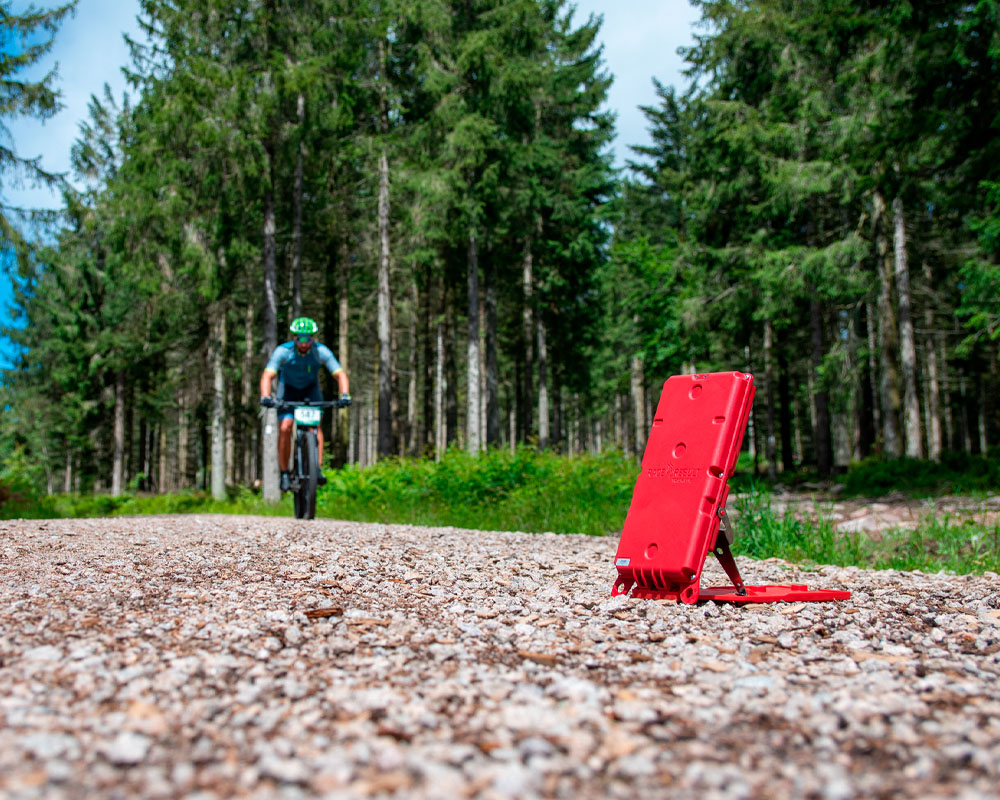

The Track Box Passive is set up along the course where the density of participants is not too high. Ideally, the device is installed perpendicular (90 degrees) to the direction of travel. With the optimal setup and transponders worn correctly, you can expect >99 % detections within 4 meters range.
Transponders up to 25 meters may be detected, but with reduced read rates. Please note: All UHF timing systems need a direct line of sight between transponder and receiving antenna.
The Track Box Passive combines the transponder read with the current GPS position and sends the data via SIM card to a defined server. It is seamlessly integrated into RACE RESULT 12 timing software where it is operated like a conventional timing system.
The configuration of the box is done via online interface. Some parameters can even be changed by sending an SMS to the box. Learn more about the configuration here.
The Track Box Passive is not designed to be used as timing system for start and finish lines. Wherever you require highest precision and rely on a detection, please use a ground antenna.
Ubidium
The cutting-edge timing system designed for superior performance and versatility. Boasts exceptional weatherproofing, lightweight design, and up to 32 hours battery life. Data is transmitted in real-time through multiple options, including SIM, Ethernet, POE, or USB-C connections.
Ubidium Foldable Ground Antenna
Delivers unprecedented flexibility and the highest detection rates. Each element contains a specially developed RACE RESULT UHF reader. The mat connects directly to Ubidium. It can be adjusted in length as desired, up to 23 meters per system (30 segments).
Track Box Passive
UHF transponder timing with only one small device. Eeasy to carry, super fast in setup and managed remotely. With UHF reader, GPS and battery integrated, it is the ideal device for split points, remote timing locations and advanced race visualization. Internal battery for 10-18 hours. Can also be powered by solar panel or external sources.
Bib with Transponder
UHF transponders specially developed for sports timekeeping. Praised by customers worldwide for highest detection rates. The accuracy is 0.2 s. Transponders are available on roll or ready-attached to a customized, personallized Tyvek bib.
RACE RESULT 12 Software
The complete software for timing and managing of any kind of sports event. The intuitive user interface allows you to setup events without complicated formulas or calculations. Featuring registration, event timing, scoring, live results and various output options in one browser-based solution.
Talk to our Experts
Our team has supported events of all sizes across the globe — and we're here to help you too. Get expert advice on the ideal timing setup for your race.
| rent | buy | ||
| Ubidium Bundle 4.6 m Ubidium + 4.6 m Ground Antenna |
n.a. | 4,990 EUR | per system |
| RACE RESULT System 5000s, 4.8m Decoder + 4.8m Ground Antenna |
320 EUR | n.a. | per system |
| Bib A5 with Transponder (duo) | 1.42 EUR - 1.68 EUR | per race number | |
| Safety Pins to attach the transponder |
7.41 EUR | per 1000 units | |
| Software RACE RESULT 12 including online registration |
0.09 EUR - 0.32 EUR | per participant |
|
| Optionally: payment processing for online registration |
1%-5% plus transaction fee
depending on the payment method |
||
| All prices plus VAT / tax if applicable | |||
Download
Everything you need to know about the timing solution at a glance:
To view this video, you need to accept YouTube’s terms.
The foam-padded Track Box case with shoulder strap includes:
